Series 4
Large capacity | Chamber volume 1070-2320 litre | Horizontal sliding door

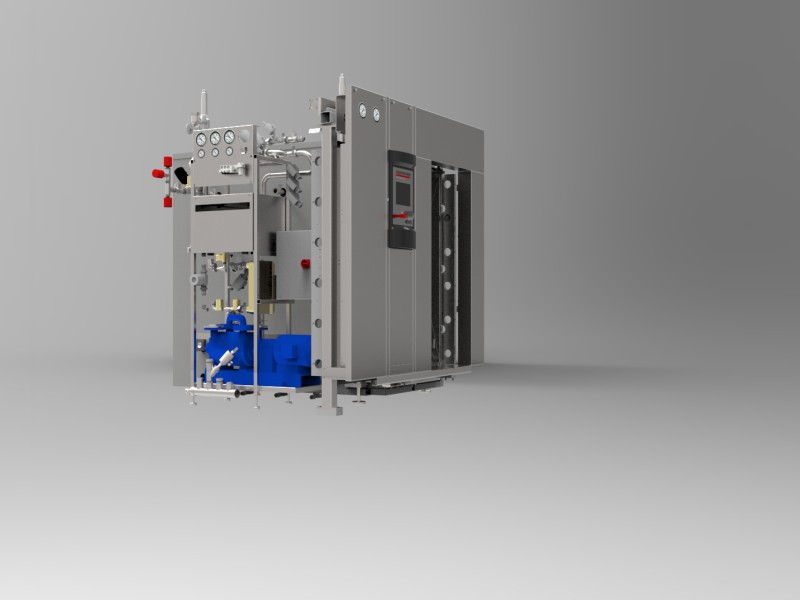

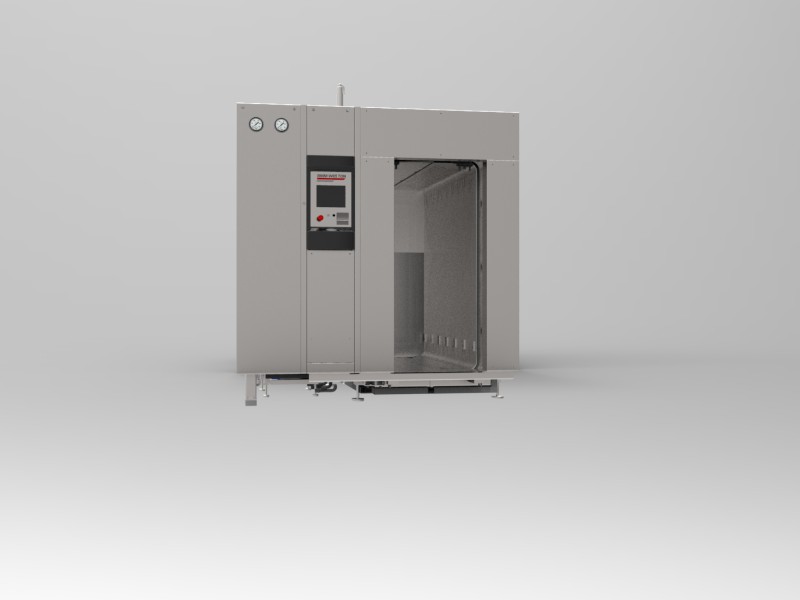

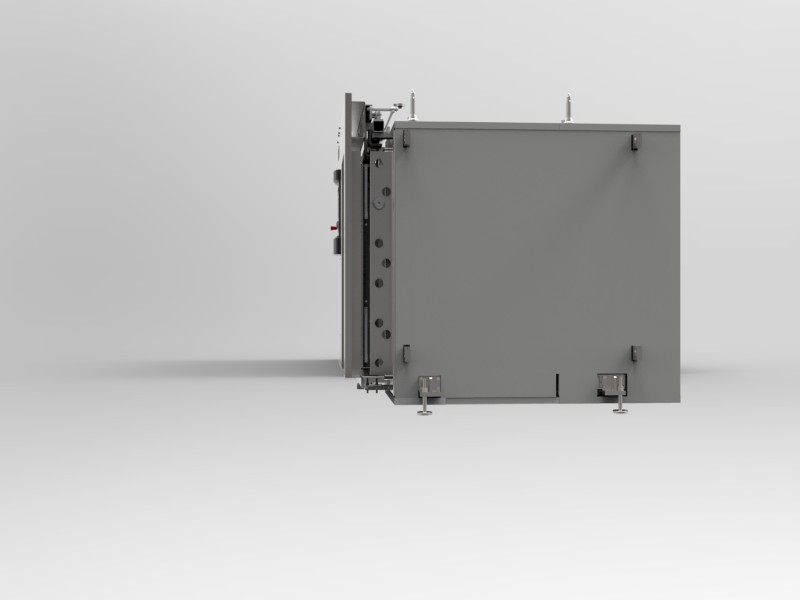

The BMM Weston Series 4 is our large pit mounted floor loading sterilizer; the large capacity unit allows great throughput processing large volumes of work.
Chamber capacities ranging from 1070 to 2320 litres, the Series 4 offers everything you need together with simplicity of operation and intuitive control. Combining functionality with high specification and premium UK engineering synonymous with BMM Weston, the Series 4 is the choice for demanding high throughput levels of work.
Series 4 Sterilizers
The Series 4 is designed to deliver maximum processing efficiency with minimum fuss. Finding the correct sterilizer for your application is crucial; performance, ease of use and reliability are essential for sustaining maximum productivity – the Series 4 Range of sterilizers has it all.
Application and programs
Discard, media preparation, glassware, fluids and textiles
Operating programs from 105°C to 134°C
Leak rate test
Cycles can be configured from a series of discrete stages
Machine Features
- Chamber and jacket in stainless steel 1.4404 / 316L (1.4571 / 316TI available)
- Full jacket and chamber surface heating
- Process pipework in stainless steel
- Air detection monitoring
- Control panel can be mounted either left or right hand side of machine
- Efficient heat exchanger and quiet double-stage vacuum pump
- Automatic powered horizontal sliding door
- Pressurised door sealing system
- Energy saving mode
- Microprocessor control
- Multi-level user control
- Control data download and backup facility
- Fully panelled fascia
- Chamber fixing positions for carriages or shelves
- Height adjustable feet
- Castors for easy positioning & installation
- ISO 13485 and ISO 9001 compliant
- UK manufactured
User Comfort
- Ergonomic working height and loading position
- 10.4” full-colour touch-screen control
- Intuitive menu navigation
- One-touch cycle start
Options
- Available as pass-through (2 door)
- Cycle data printer
- Front-mounted power sockets
- Full cabinet panels
- Polished vessel and door
- Barrier Seal (SPF air tight barrier)
- Integral steam generator (Steam heated)
- Integral steam generator (Electrically heated)
- Steam filter system
- Steam sampling
- Water conservation system
- Chilled water recovery system
- Drain cooling system
- Independent monitoring
- Traceability system compliant
Accessories
- Loading equipment
- Baskets, trays and containers
- Pass-through systems
- Steam generation systems
- Water purification systems
- Cycle data archiving
- Air compressor
- Bar code reader system
- Remote keypad
UK Manufacture – Standard Compliant
As with all BMM Weston sterilizers - quality is at the heart of what we do; UK Manufacturing is our strength and ensures the highest level of quality in both materials and workmanship.
Operating to ISO 13485 & ISO 9001 BMM Weston sterilizers comply.
| Sterilizer Model No. | BMM Discard Bins (295x295x235mm) | Volume (Litres) | Chamber size (w x h x d) mm |
Horizontal sliding door | Single Ended | Double Ended (double door) | Barrier seal available | Integral steam generator available | Overall width & height (mm) | Overall length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| L440 | 24 | 1070 | 680x1570x1000 | ✔ | ✔ | ✘ | ✔ | ✔ | 2100x 2180 | 2040 |
| L450 | 32 | 1410 | 680x1570x1320 | ✔ | ✔ | ✘ | ✔ | ✔ | 2100x 2180 | 2360 |
| L460 | 40 | 1750 | 680x1570x1640 | ✔ | ✔ | ✘ | ✔ | ✔ | 2100x 2180 | 2680 |
| L470 | 48 | 2090 | 680x1570x1960 | ✔ | ✔ | ✘ | ✔ | ✔ | 2100x 2180 | 3000 |
| L440D | 24 | 1290 | 680x1570x1210 | ✔ | ✘ | ✔ | ✔ | ✔ | 2100x 2180 | 1750 |
| L450D | 32 | 1630 | 680x1570x1530 | ✔ | ✘ | ✔ | ✔ | ✔ | 2100x 2180 | 2070 |
| L460D | 40 | 1980 | 680x1570x1850 | ✔ | ✘ | ✔ | ✔ | ✔ | 2100x 2180 | 2390 |
| L470D | 48 | 2320 | 680x1570x2170 | ✔ | ✘ | ✔ | ✔ | ✔ | 2100x 2180 | 2710 |
