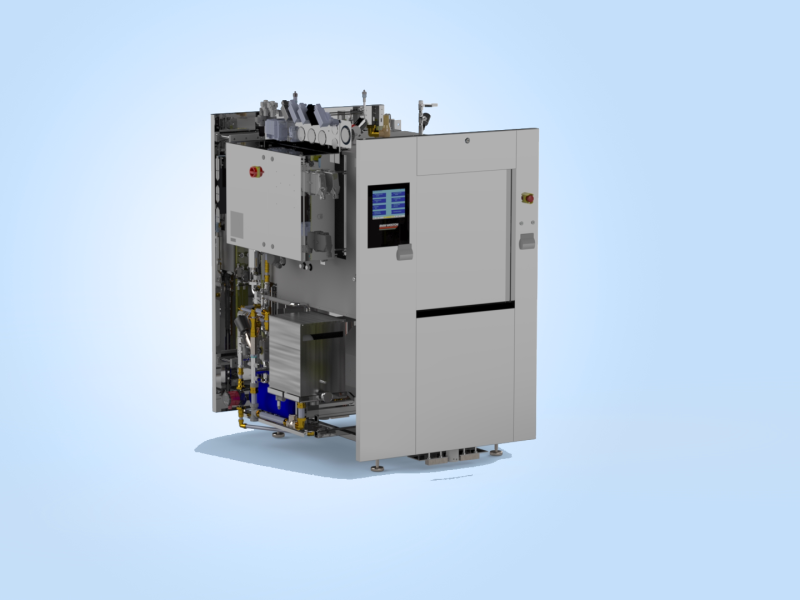

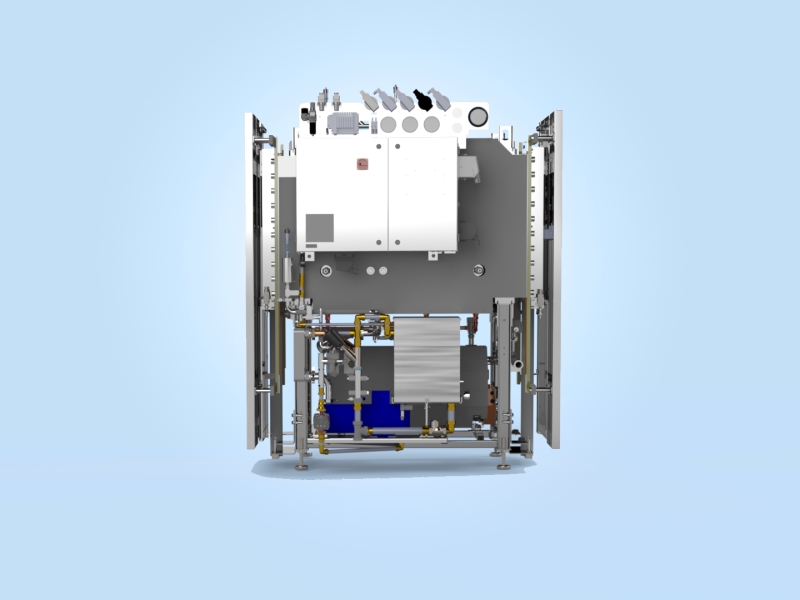

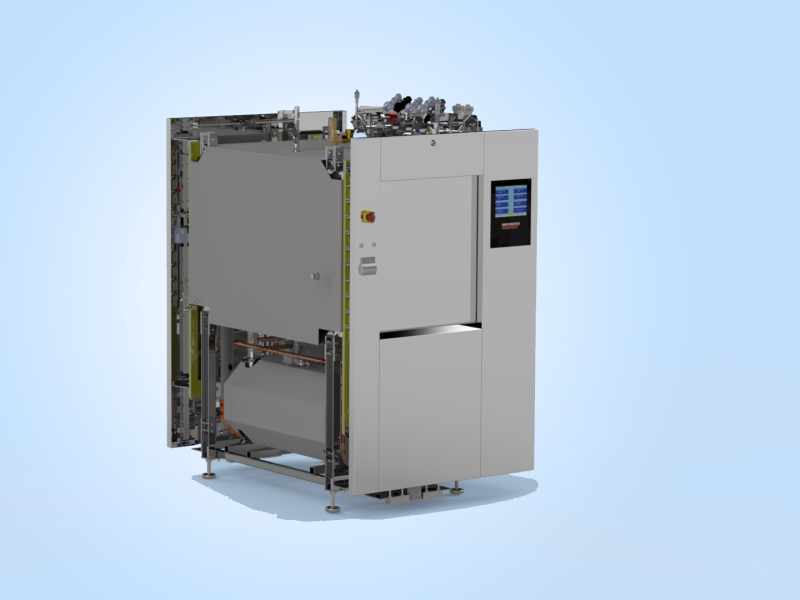

Series 2
Medium capacity | Chamber volume 370-870 litre | Vertical sliding door
The BMM Weston Series 2 is the narrow fascia mid-capacity sterilizer; compact yet versatile, the Series 2 is designed for your department where space is a premium.
Chamber capacities ranging from 370 to 870 litres, the Series 2 offers everything you need together with simplicity of operation and intuitive control. Combining functionality with high specification and premium UK engineering synonymous with BMM Weston, the Series 2 is the number one choice for today’s demanding environment.
Series 2 Sterilizers
The Series 2 is designed to deliver maximum processing efficiency with minimum fuss. Finding the correct sterilizer for your application is crucial; performance, ease of use and reliability are essential for sustaining maximum productivity – the Series 2 Range of sterilizers has it all.
Application and programs
Discard, media preparation, glassware, fluids and textiles
Operating programs from 105°C to 134°C
Leak rate test
Cycles can be configured from a series of discrete stages
Machine Features
- Chamber and jacket in stainless steel 1.4404 / 316L (1.4571 / 316TI available)
- Full jacket and chamber surface heating
- Process pipework in stainless steel
- Air detection monitoring
- Control panel can be mounted either left or right hand side of machine
- Efficient heat exchanger and quiet double-stage vacuum pump
- Automatic powered vertical sliding door
- Pressurised door sealing system
- Energy saving mode
- Microprocessor control
- Multi-level user control
- Control data download and backup facility
- Narrow fascia width
- Fully panelled fascia
- Chamber fixing positions for carriages or shelves
- Height adjustable feet
- ISO 13485 and ISO 9001 compliant
- UK manufactured
User Comfort
- Ergonomic working height and loading position
- 10.4” full-colour touch-screen control
- Intuitive menu navigation
- One-touch cycle start
Options
- Available as pass-through (2 door)
- Cycle data printer
- Front-mounted power sockets
- Full cabinet panels
- Polished vessel and door
- Barrier Seal (SPF air tight barrier)
- Integral steam generator (Steam heated)
- Integral steam generator (Electrically heated)
- Steam filter system
- Steam sampling
- Water conservation system
- Chilled water recovery system
- Drain cooling system
- Independent monitoring
- Traceability system compliant
Accessories

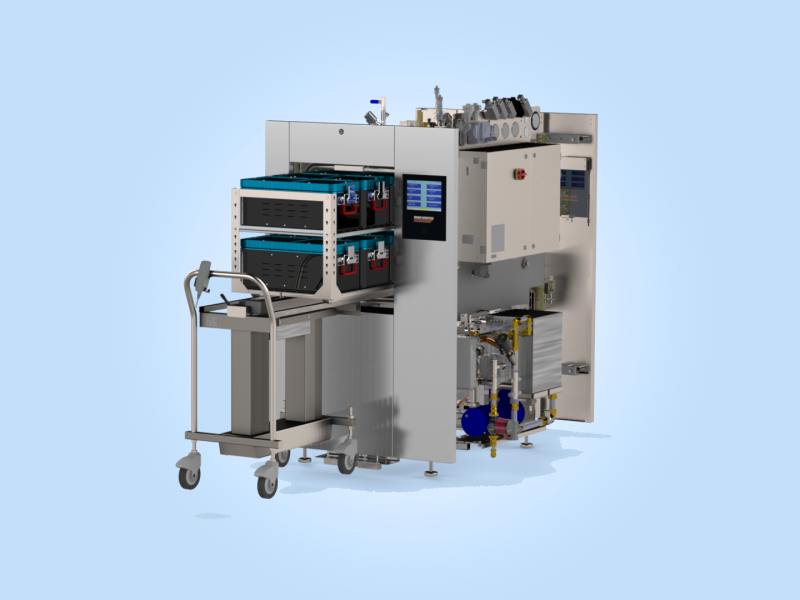

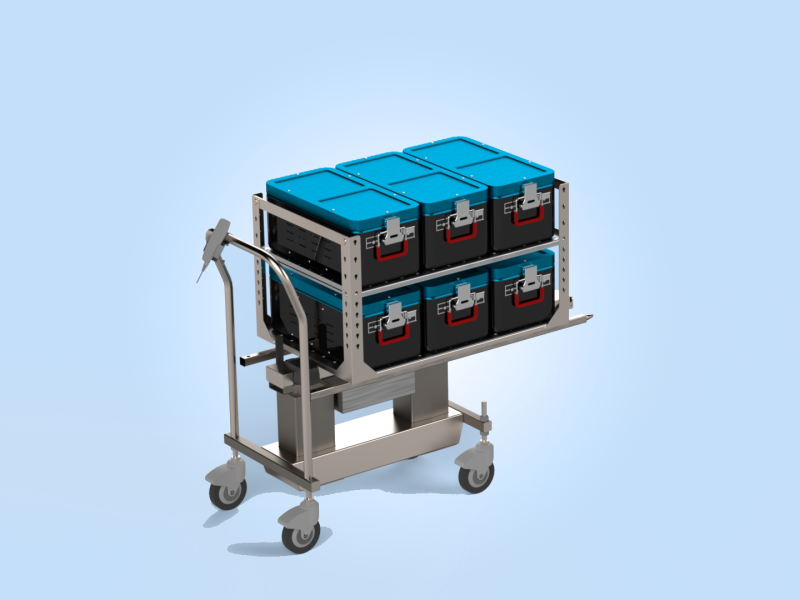

- Loading equipment
- Baskets, trays and containers
- Pass-through systems
- Steam generation systems
- Water purification systems
- Cycle data archiving
- Air compressor
- Bar code reader system
- Remote keypad
UK Manufacture – Standard Compliant
As with all BMM Weston sterilizers - quality is at the heart of what we do; UK Manufacturing is our strength and ensures the highest level of quality in both materials and workmanship.
Operating to ISO 13485 & ISO 9001 BMM Weston sterilizers comply.

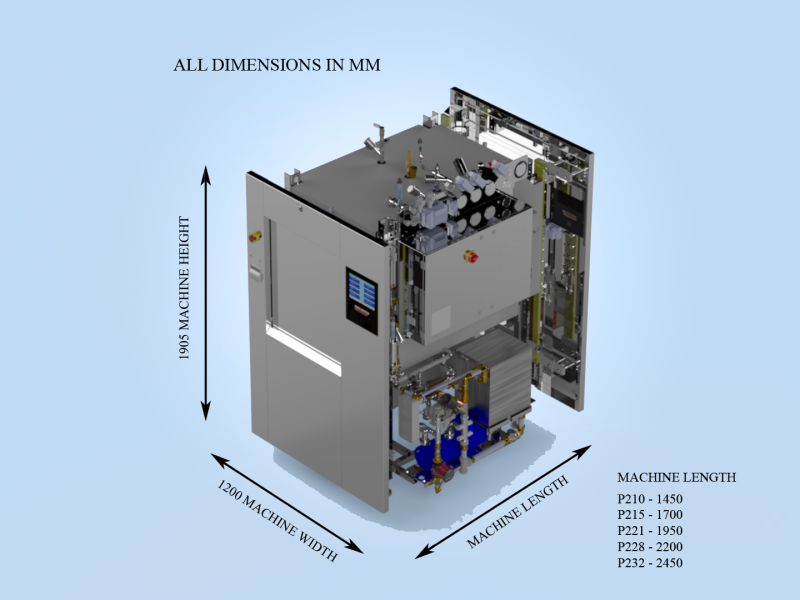

| Sterilizer Model No. | BMM Discard Bins (295x295x235mm) | Volume (Litres) | Chamber size (w x h x d) mm |
Vertical sliding door | Single Ended | Double Ended (double door) | Barrier seal available | Integral steam generator available | Overall width & height (mm) | Overall length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| L210 | 8 | 370 | 660x700x800 | ✔ | ✔ | ✘ | ✔ | ✔ | 1200x 1905 | 1450 |
| L215 | 12 | 485 | 660x700x1050 | ✔ | ✔ | ✘ | ✔ | ✔ | 1200x 1905 | 1700 |
| L221 | 16 | 600 | 660x700x1300 | ✔ | ✔ | ✘ | ✔ | ✔ | 1200x 1905 | 1950 |
| L228 | 20 | 715 | 660x700x1550 | ✔ | ✔ | ✘ | ✔ | ✔ | 1200x 1905 | 2200 |
| L232 | 24 | 830 | 660x700x1800 | ✔ | ✔ | ✘ | ✔ | ✔ | 1200x 1905 | 2450 |
| L210D | 8 | 480 | 660x700x1045 | ✔ | ✘ | ✔ | ✔ | ✔ | 1200x 1905 | 1415 |
| L215D | 12 | 610 | 660x700x1325 | ✔ | ✘ | ✔ | ✔ | ✔ | 1200x 1905 | 1695 |
| L221D | 16 | 740 | 660x700x1605 | ✔ | ✘ | ✔ | ✔ | ✔ | 1200x 1905 | 1975 |
| L228D | 20 | 870 | 660x700x1885 | ✔ | ✘ | ✔ | ✔ | ✔ | 1200x 1905 | 2255 |
